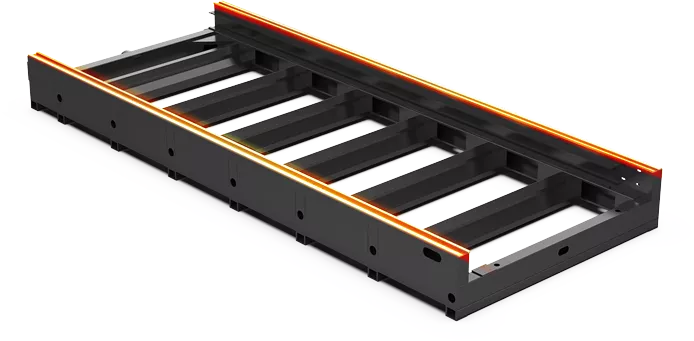

It is welded by thick steel plate, the current mainstream bed structure, high stability;
High temperature annealing treatment, less heat absoption, deformation prevention.
![](https://www.xtlaser.es/wp-content/uploads/2021/12/2022032269.png)
![](https://www.xtlaser.es/wp-content/uploads/2022/03/2022031880.png)
It is manufactured with aerospace standards and formed by press extrusion molding. After aging treatment,its strength can reach to very strong point.
Aviation aluminium has many advantages: good toughness,light weight,corrosion resistence,anti-oxidation and highly increase the processiong speed.
![](https://www.xtlaser.es/wp-content/uploads/2022/03/2022031856.png)
![](https://www.xtlaser.es/wp-content/uploads/2021/12/2022032236.png)
![](https://www.xtlaser.es/wp-content/uploads/2022/03/2022031880.png)
Easy to operate even by green hands, It support multiple graphic files include DXF, PLT, DWG, AI, G-code, IGS (tube cutting). It is compatible with other nesting software also
PAD type operation monitor
Support multi-brand nesting software
One-key switch between tube cutting & plate cutting
Multi language support
Auxiliary gas low pressure & cutting error alarm
Safety warning light
![](https://www.xtlaser.es/wp-content/uploads/2022/03/2022031880.png)
![](https://www.xtlaser.es/wp-content/uploads/2021/12/2022012180.png)

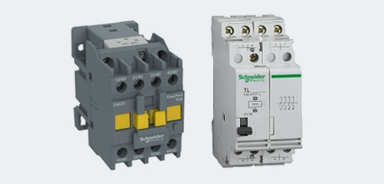

Schneider electric parts make sure of machine working safely and efficiently
![](https://www.xtlaser.es/wp-content/uploads/2021/12/2022012183.png)
Saving cost by making complete use of gas
![](https://www.xtlaser.es/wp-content/uploads/2021/12/2022012136.png)

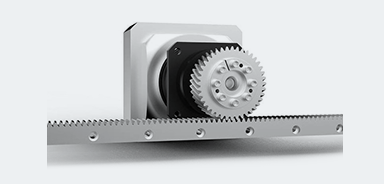

Making sure of accuracy of the equipment for very long time
![](https://www.xtlaser.es/wp-content/uploads/2022/03/2022031880.png)
Model |
XT-W1530 |
XT-W2040 |
XT-W2060 |
XT-W2560 |
XT-W30120 |
Working Area |
1530×3050mm |
2030×4050mm |
2030×6050mm |
2530×6050mm |
3000×12000mm |
Max Linkage Speed |
140m/min |
140m/min |
140m/min |
140m/min |
80m/min |
Max Acceleration |
1.5G |
1.5G |
1.5G |
1.5G |
0.6G |
Positional Accuracy |
±0.03mm |
±0.03mm |
±0.03mm |
±0.03mm |
±0.05mm |
Re-positional Accuracy |
±0.02mm |
±0.02mm |
±0.02mm |
±0.02mm |
±0.03mm |
