Series HT

HT SERIES

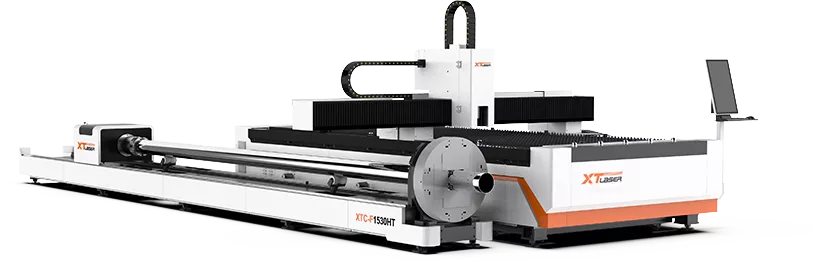

Single Table Tube & Plate

Fiber Laser Cutting Machine 1000W-6000W

One Machine with Two Functions•

Intelligent CNC System•

Double Pneumatic Chucks•

Open Structure, Convenient Loading & Unloading•

HT SERIES

Single Table Tube & Plate

Fiber Laser Cutting Machine 1000W-4000W

One Machine with Two Functions

Intelligent CNC System

Double Pneumatic Chucks

Open Structure, Convenient Loading & Unloading

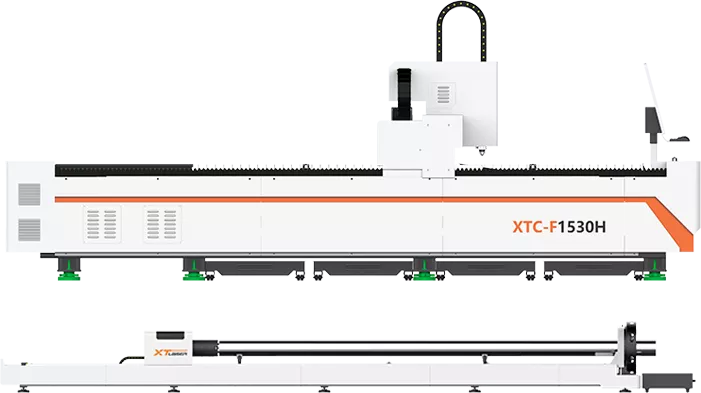

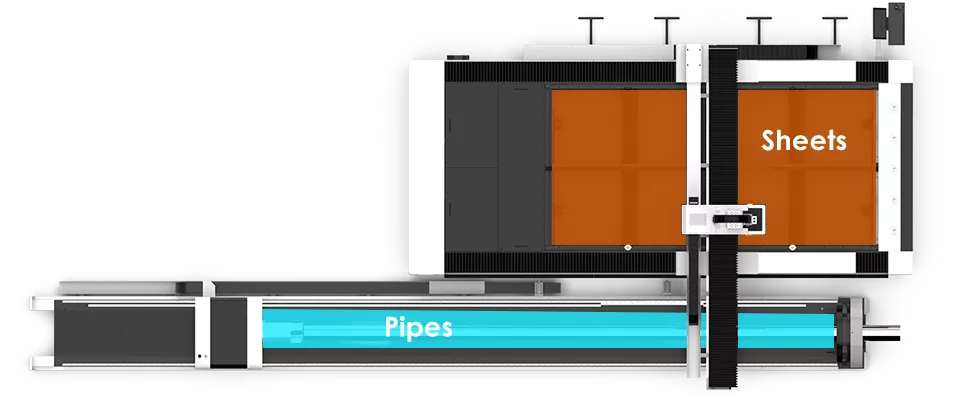

One Machine with Two Functions

HT series can cut both tube and plate metals,
combining a tube laser cutting machine and plate laser cutting machine.

Save purchasing costs One machine with multi-function Save working space

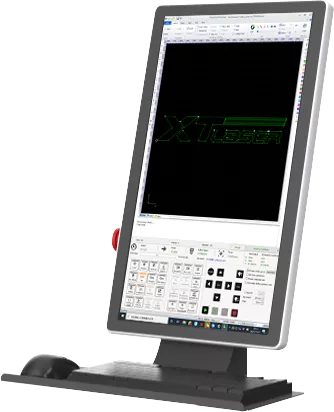

Intelligent CNC System

Easy to operate even by green hands, It support multiple graphic files include DXF, PLT, DWG, AI, G-code, IGS (tube cutting). It is compatible with other nesting software also.

PAD type operation monitor
Support multi-brand nesting software
One-key switch between tube cutting & plate cutting
Multi language support
Auxiliary gas low pressure & cutting error alarm
Safety warning light

Double Pneumatic Chucks

2~3 times faster than traditional electric chucks
2 rows of rollers are adopted for a wide range of clamping and high cutting precision.
Dual support frame for 6m tube

Φ20-220mm □20-150mm Diagonal: 20-150mm
Channel & angle steel available

Open Structure, Convenient Loading & Unloading

Saving Space
Tube cutting and plate cutting combined in one machine. Not only help user save purchasing cost 30%~50%, but also save 50% working space.

Cutting Samples

Video

Product Parameters

Model	XT-H1530T	XT-H1545T	XT-H2040T	XT-H2060T
Working Area	1530×3050mm	1530×4550mm	2030×4050mm	2030×6050mm
Max Linkage Speed	140m/min	140m/min	140m/min	140m/min
Max Acceleration	1.5G	1.5G	1.5G	1.5G
Positional Accuracy	±0.03mm	±0.03mm	±0.03mm	±0.03mm
Re-positional Accuracy	±0.02mm	±0.02mm	±0.02mm	±0.02mm
Pipe Section Shape	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular	Round/Square Tube/Rectangular
Tube Size Range (Dual Pneumatic)	T160：Round:Φ16-Φ155mm Square：□16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular:Long Side≤220mm	T160：Round:Φ16-Φ155mm Square:□16-□155mm Rectangular：Long Side≤155mm T220: Round：Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm	T160：Round:Φ16-Φ155mm Square:16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm	T160：Round:Φ16-Φ155mm Square:□16-□155mm Rectangular:Long Side≤155mm T220: Round:Φ20-Φ220mm Square：□20-□220m Rectangular：Long Side≤220mm
