Jinan Xintian Technology Co., LTD. is a high-tech enterprises,which gathers development,design,manufacture

More and more clients and factory get in this market, fiber laser cutting machine is more and more popular now.

Some of them need to cut metal sheet, and others need to cut tube.

Whatever round tube or square tube, this machine is use more in this market now.

Besides for  cutting tube , there are two kind of laser cutting machine in this market.

Let us share tube laser cutting machine explain with you.

1.Tube and plate cutting machine, which can not only cut plate and also tube

3m length or 6m length

① In such machine, rotary size including 160mm and 200mm

If 160mm diameter rotary, it can hold maximum no more than 160mm round tube , and maximum 109m*109mm square tube

Or if 200mm diameter rotary, it can hold maximum no more than 215mm round tube , and maximum 150mm*150mm square tube

② Perhaps client choose automatic clamping, then front rotary is electric clamping (speed of clamping can be adjusted), back rotary is pneumatic clamping(speed of clamping can be adjusted)

③ About weight

No matter it is 3m or 6m, maximum weight is no more than 150kg

2.Tube cutting machine, 6m length

① In such machine, rotary size including 200mm and 300mm

200mm diameter rotary, it can hold maximum no more than 215mm round tube , and maximum 150mm*150mm square tube

300mm diameter rotary, it can hold maximum no more than 320mm round tube , and maximum 240mm*240mm square tube

② All of rotaries are pneumatic clamping (speed of clamping can be adjusted)

③ About weight

No matter it is 6m or 3m, maximum weight is no more than 300kg

If you can get these informnation of tube laser cutting machine explain, hope it will help you.

Any question, pls do not hesitate to contact us.

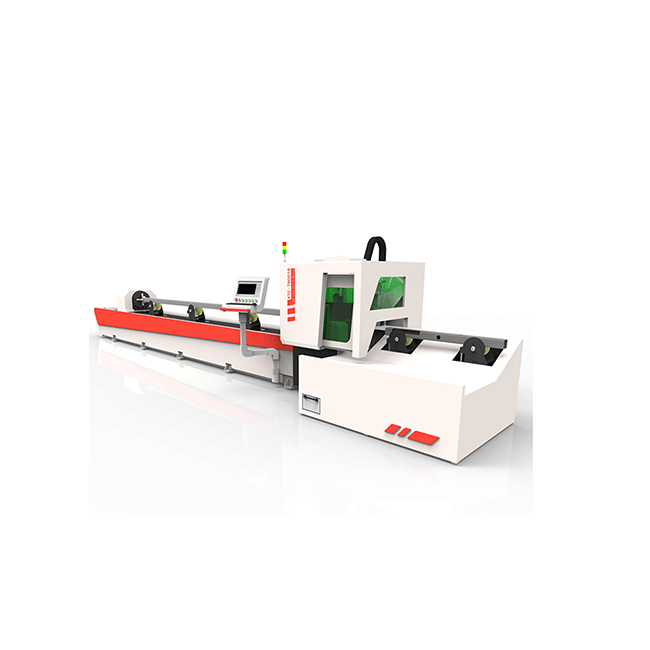

Machine with full cover
